Introduction

In the rapidly evolving world of construction and mining, the demand for high-quality manufactured sand has never been greater. As natural sand resources become increasingly scarce and environmental regulations tighten, the VSI sand making machine has emerged as an indispensable solution for modern aggregate production. The Vertical Shaft Impact (VSI) crusher, commonly referred to as a sand making machine, represents the pinnacle of crushing technology, combining high efficiency, superior particle shaping, and remarkable cost-effectiveness.

This comprehensive guide explores the VSI sand making machine in detail—from its working principles and technical specifications to its wide-ranging applications and maintenance requirements.

What Is a VSI Sand Making Machine?

A VSI sand making machine, also known as a vertical shaft impact crusher, is a high-performance piece of equipment designed specifically for crushing and shaping minerals, rocks, and ores into fine sand and aggregates. Unlike traditional compression crushers that rely on pressure to break materials, the VSI sand making machine utilizes high-velocity impact to achieve superior particle breakage and shaping.

The sand making machine derives its name from its primary function: producing high-quality manufactured sand that meets the stringent specifications required for modern construction projects, including highways, high-speed railways, high-rise buildings, municipal engineering, hydroelectric dam construction, and concrete mixing plants.

Working Principle of the VSI Sand Making Machine

The working principle of the VSI sand making machine is both elegant and highly effective. Material enters the machine from the top and falls vertically into a high-speed rotating impeller. Under the action of powerful centrifugal force, the material is accelerated to speeds of 60–100 m/s and ejected from the impeller outlets.

The VSI sand making machine offers two distinct feed modes to accommodate different production requirements:

Center Feeding Mode

In this configuration, material falls directly into the feed hopper, passes through the central feeding hole, and enters the high-speed rotating rotor. The material is fully accelerated and thrown out through the discharge ports, first colliding with freely falling material that has been rebounded, then impacting the vortex material lining or impact blocks within the crushing chamber. This creates a continuous material curtain that results in multiple impacts, friction, and grinding actions.

Center Feeding with Cascade Feed

This enhanced mode divides the incoming material into two streams. One portion enters the high-speed rotating impeller through the distributor, while the other portion falls freely from the periphery of the distributor. The accelerated material from the impeller collides with the freely falling material, achieving even greater crushing efficiency.

The sand making machine incorporates both "rock-on-rock" (stone beating stone) and "rock-on-iron" (stone beating iron) crushing principles. In rock-on-rock mode, material impacts against a rock lining formed within the crushing chamber, while rock-on-iron mode utilizes anvils or impact blocks. This versatility allows the VSI sand making machine to adapt to different material characteristics and production goals.

Two Crushing Modes: Rock-on-Rock and Rock-on-Iron

The VSI sand making machine distinguishes itself through its dual crushing modes:

Rock-on-Rock (Stone Beating Stone): Material accelerated by the rotor impacts against a lining of the same material accumulated in the crushing chamber. This mode is ideal for producing high-quality cubical aggregates with minimal contamination and is the preferred choice for sand production.

Rock-on-Iron (Stone Beating Iron): Material impacts against metal anvils or impact blocks. This mode delivers more aggressive crushing and is suitable for harder materials or when higher reduction ratios are required.

The ability to switch between these modes makes the VSI sand making machine exceptionally versatile across different applications and material types.

Key Advantages of the VSI Sand Making Machine

Superior Particle Shape

The VSI sand making machine produces cubical-shaped particles with excellent gradation—a critical factor for concrete workability and strength. Research has demonstrated that aggregates produced by VSI crushers show superior particle shape compared to those from cone crushers. Furthermore, mortars made with VSI-crushed aggregates exhibit higher fluidity, lower air content, and greater compressive strength.

Consistent Product Grading

One of the most significant advantages of the VSI sand making machine is its ability to maintain constant product grading. As industry experts note, "If you feed a VSI constantly, it gives you a constant grading". In contrast, cone crushers suffer from inconsistency in quality due to uneven liner wear patterns. This consistency makes the VSI sand making machine the ultimate choice for sand production.

High Efficiency and Output

The VSI sand making machine delivers exceptional production capacity, with throughput ranging from 60 to 520 tons per hour depending on the model and configuration. Compared to traditional equipment under the same motor power, the VSI sand making machine achieves approximately 30% higher yield. The optimized deep cavity rotor design increases material throughput by about 30%.

Lower Operating Costs

The VSI sand making machine features significantly reduced wear parts consumption due to its optimized crushing chamber design. Operating costs are approximately 30% lower than traditional equipment. The service life of wear components is increased by more than 40%, reducing maintenance frequency and costs.

Environmental Friendliness

Modern VSI sand making machines incorporate advanced dust suppression and noise reduction technologies. The deep cavity turbine design, efficient exhaust systems, and dust removal equipment significantly reduce dust pollution. Smooth operation minimizes vibration and noise during startup and operation.

Technical Parameters

Note: Technical data are subject to change without prior notice.

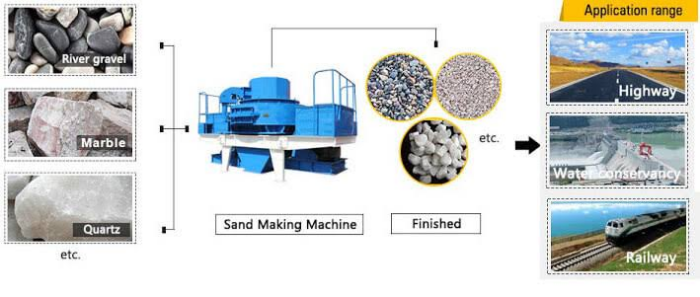

Applications of the VSI Sand Making Machine

The VSI sand making machine finds extensive application across multiple industries:

Construction and Infrastructure: Producing high-quality aggregates for highways, high-speed railways, bridges, airports, and municipal engineering projects.

Concrete Production: Supplying premium manufactured sand for concrete batching plants and ready-mix concrete operations.

Mining and Mineral Processing: Preparing fine ores for further processing and recovering value from tailings.

Hydropower and Water Conservancy: Providing aggregates for dam construction and water conservancy facilities.

Refractory and Abrasive Industries: Crushing refractory materials, abrasives, and other specialized minerals.

The sand making machine is suitable for processing a wide variety of materials, including pebbles, limestone, granite, basalt, diabase, andesite, quartzite, iron ores, cement clinkers, ore tailings, and construction debris.

VSI vs. Cone Crusher for Sand Production

When selecting equipment for manufactured sand production, the VSI sand making machine consistently outperforms cone crushers in several critical aspects:

Particle Shape: VSI crushers produce superior cubical particles with better shape characteristics.

Consistency: The VSI sand making machine maintains constant product grading regardless of wear, while cone crushers experience quality degradation as liners wear unevenly.

Efficiency: VSI crushers produce significantly more fine material (<1mm) while consuming less power compared to cone crushers.

Versatility: Mobile VSI crushers are lighter (20-40 tons vs. 40-70 tons for cone crushers) and feature faster setup times (1-2 hours), making them more suitable for on-site projects.

For applications where consistent grading and superior particle shape are paramount, the VSI sand making machine is unequivocally the superior choice.

Maintenance and Operation

Proper maintenance is essential for maximizing the lifespan and performance of any VSI sand making machine. Key maintenance practices include:

Regular Inspections: In high-abrasion applications such as manufactured sand production, inspections may be necessary as frequently as every four hours.

Lubrication System: The sand making machine features a reliable dual-pump oil supply lubrication system that ensures stable performance and extended service life.

Hydraulic Maintenance: Hydraulic jack devices facilitate convenient, time-saving maintenance and parts replacement.

Rotor and Wear Part Checks: Regular inspection of the rotor, impeller, liners, and other vulnerable components is critical for preventing performance issues and costly repairs.

Conclusion

The VSI sand making machine represents the state of the art in manufactured sand production and aggregate shaping. Its unique rock-on-rock crushing principle, combined with high-speed impact technology, delivers superior particle shape, consistent grading, and exceptional efficiency. With capacities ranging from 60 to 520 tons per hour and the ability to process virtually any material type, the VSI sand making machine has become an indispensable asset for modern construction, mining, and infrastructure projects worldwide.

As the global demand for manufactured sand continues to grow and natural sand resources become increasingly constrained, the VSI sand making machine will undoubtedly play an even more critical role in meeting the world's aggregate needs. Whether for highway construction, dam building, or concrete production, this versatile and efficient sand making machine delivers the quality, consistency, and reliability that modern industry demands.
