What is DS1525 mini rock crusher?

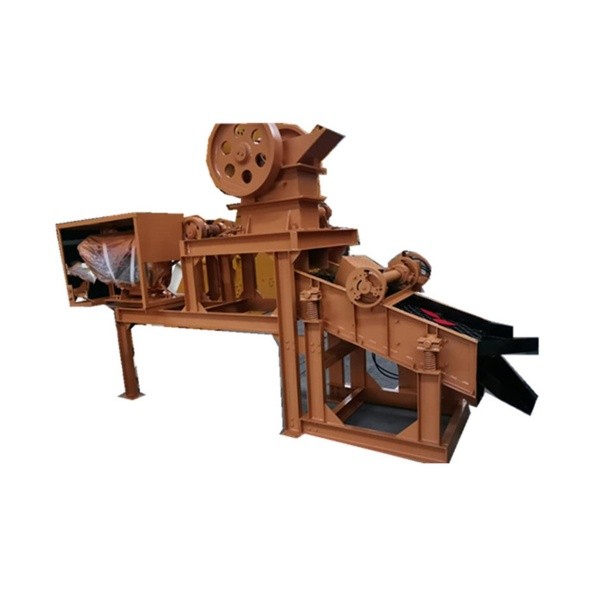

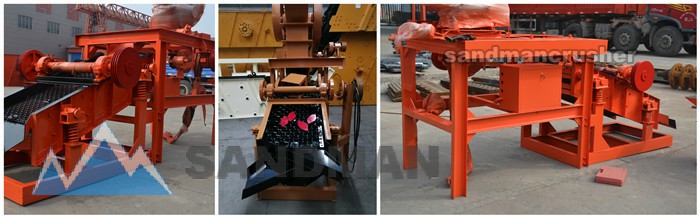

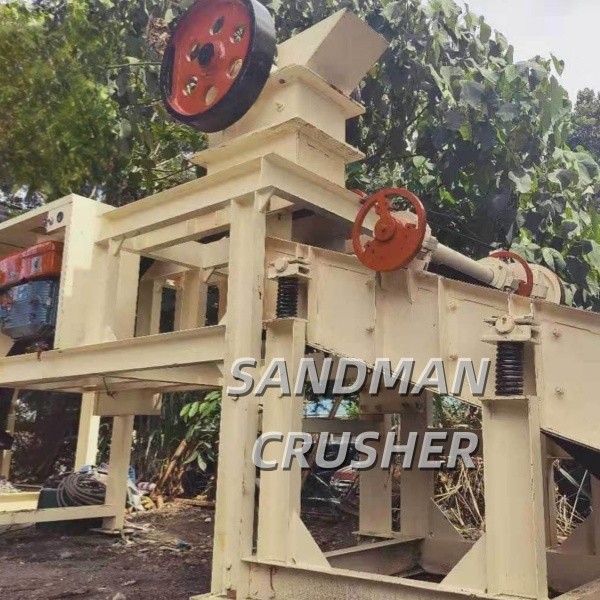

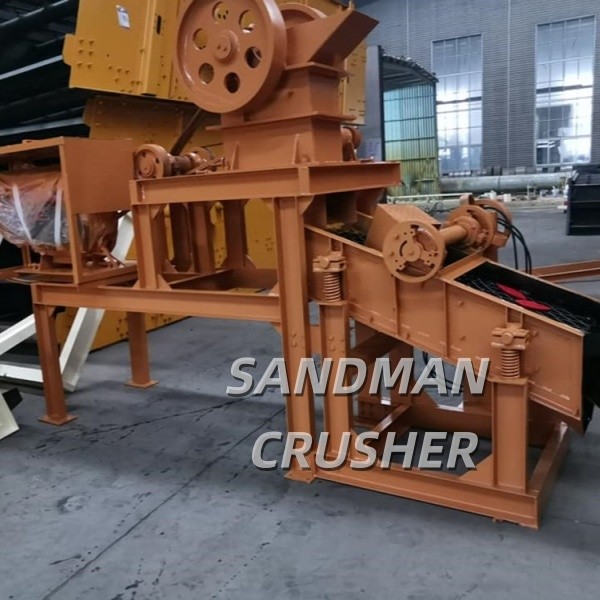

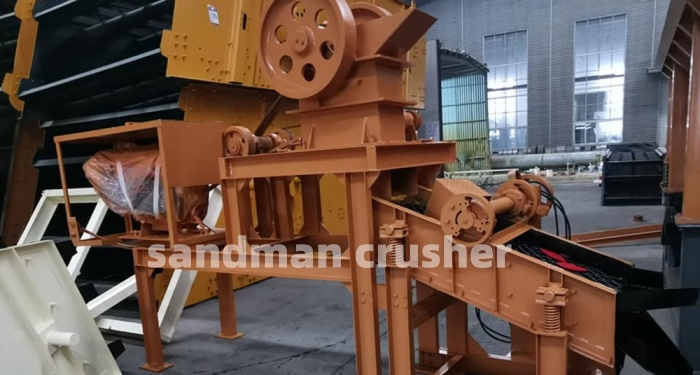

DS1525 mini rock crusher is a small stationary crushing and screening machine, it is used for crushing concrete stones, includes a mini jaw crusher, a mini vibrating screen, a hopper, and a diesel engine.

What is the input size of mini rock crusher?

This mini rock crusher main crushing tool is a Jaw crusher, the jaw opening size is 150*250mm, and suggested material input size is ≤125mm, or smaller in all directions.

How big capacity of the mini rock crusher?

The average capacity is about 2 tons per hour.

It is a mini crushing and screening plant, jaw crusher capacity is about 1-3 tons per hour, has adjustable output size from 10-40mm max.For example, when the jaw crusher discharge port is set to a minimum of 10 mm, the equipment output is 1 ton per hour; while when the jaw crusher discharge port is set to a maximum of 40 mm, the output is 3 tons per hour. Output is affected by various factors, such as the hardness of the material, moisture content, material size, and the smoothness of the discharge.

What is the particle size of the output from this mini rock crusher?

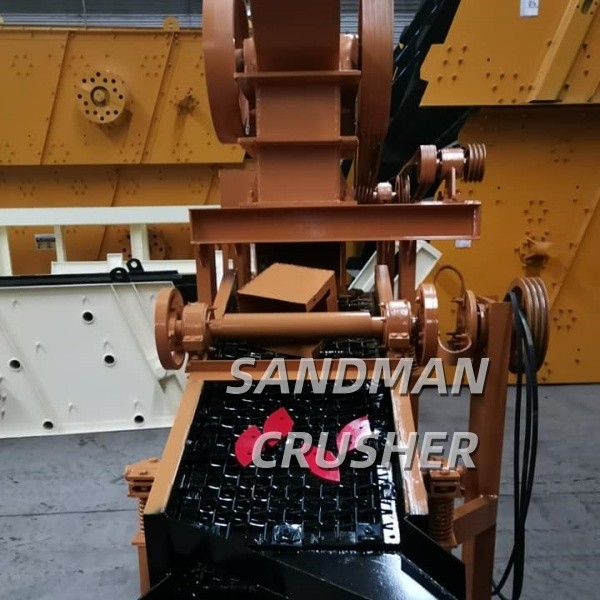

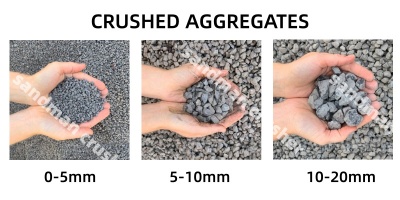

Mini rock crusher is equipped with a mini vibrating screen, the final aggregate output has three different size specifications. The output particle size can be adjusted according to your requirements,such as 3/8", 3/4", and 1 1/2", which can meet most needs.Final aggregates are generally used in road construction, building projects, etc.

What are this mini rock crusher application areas?

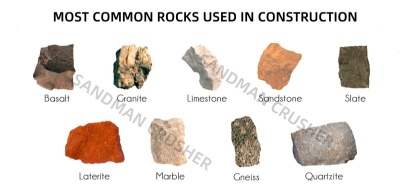

1. Mining and aggregate production:This portable rock crusher can crush hard rocks such as granite, basalt, limestone, and pebbles. The crushed aggregate can be used for concrete production. Portable rock crusher is ideal for small quarries or temporary mines.

2. Construction and demolition waste recycling: Concrete waste, brick and stone waste, reinforced concrete, etc., can all be crushed using this small portable rock crusher. Mobile crushing plants help you process these wastes on-site, reducing transportation costs and landfill volume.

3. River and Environmental Cleanup: You can use our mini portable rock crusher to process large waste rocks in rivers for easier disposal or reuse.

4. Mine tailings and slag treatment: Mine tailings can be crushed to reduce volume, which helps with waste reuse.

What are the outstanding advantages of this mini rock crusher?

1. Compact Size

This equipment has a small footprint, allowing it to operate flexibly in confined workspace or restricted construction sites.

2. Excellent Operability

Simple and intuitive button operation makes it very easy to operate and control. No professional training is required; one operator can easily learn and operate it, effectively reducing maintenance time and labor costs.

3. Easy to Transport

Its compact design makes it very convenient to transport.

4. Low Investment and Maintenance Costs

The stable structure and durable materials reduce wear and tear, ensuring a long service life and low operating costs.

5. Quick Installation and Commissioning

The installation and commissioning process is simple and quick, without complicated steps. It can be put into use quickly upon arrival at the construction site, greatly shortening preparation time and improving construction efficiency.

6. It is powered by a small diesel engien, no need electric.

What industries do we serve?

Our clients span a wide range, including small and medium-sized contractors, aggregate producers, and mining companies.

Contractors: Reduce aggregate costs.

Create additional revenue streams.

Control costs and output.

Producers: Improve efficiency and profitability.

Reduce electricity and maintenance costs.

Minimize downtime.

What is mini rock crusher technical parameters?

Note: Technical data are subject to change without prior notice.

What are the main wear and tear parts of mini rock crusher?

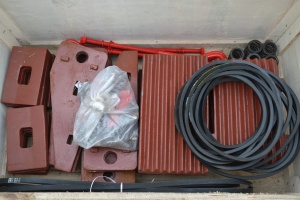

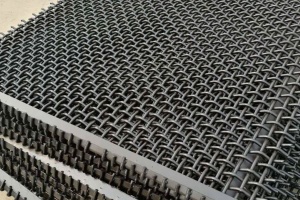

The main wear parts include jaw plates (movable jaw plate + fixed jaw plate), side plates, toggle plates, and screen meshes.

We provide these wear parts to you at cost price on a stable, long-term basis. Most wear parts cost only a few hundred US dollars, offering high quality at a low price.

Operation and Maintenance Frequently Asked Questions

1. What routine maintenance is required for a crusher?

A: Regular inspections are crucial for extending the machine's lifespan. This includes checking the lubricating oil level, monitoring belt tension, and ensuring the crushing chamber is unobstructed.

2. How often should wear parts (such as jaw plates or liners) be replaced?

A: This depends entirely on the abrasiveness of the material you are crushing. Hard, highly abrasive rocks (such as granite) wear out faster than softer limestone. We can help you predict the parts needed to ensure timely replacement.

3. What information do I need to provide for an accurate quote?

A: To provide you with the most accurate quote, our experts typically ask for the following information:

1) The type of material you want to crush,

2) Your expected hourly output (tons),

3) Your target particle size for the final product.

With this information, we can configure the most suitable machine or complete processing line for you.
