Overview

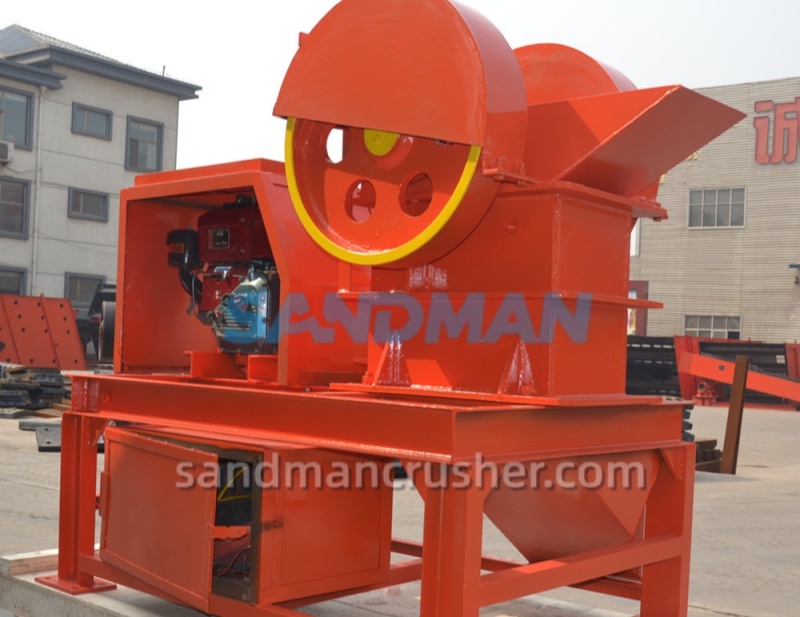

1. The D1525 diesel stone crusher equipment is used for crushing concrete stones; it includes a jaw crusher and a diesel engine.

2.D1525 is suitable for crushing soft to hard stones, such as limestone, granite, basalt, river stone, demolition, glass, waste bricks, etc. Whether it is recycling concrete or asphalt, producing base aggregate, decorative rock, granite countertop scrap, recycling glass, slag, etc., the applications and income-producing possibilities of our sandman crusher are endless.

3. This D1525 diesel stone crusher is a stationary type.

4 . Powered by a 12HP diesel engine. This diesel stone crusher consumes about 2 liters of fuel per hour.

5. Jaw crusher jaw opening size is 150*250mm, and the suggested material input size is <150mm, or smaller in all directions.

6.  1-3 tons per hour capacity, the diesel stone crusher has adjustable output size from 10-40mm max.(for reference, at the tightest jaw setting of 10mm, you will get 1 ton per hour; whereas at the largest jaw setting at 40mm, you will get 3 tons. The average capacity is about 2 tons per hour. (The specific output is affected by many factors, such as the hardness of the stone, the water content of the stone, the size of the feed, and the smoothness of the discharge)

In this the diesel stone crusher,the "150×250" designation refers to the dimensions of the feed opening; the machine accommodates a maximum standard feed size of 125mm and offers an adjustable discharge opening (10–40mm). the diesel stone crusher delivers a stable hourly output of 1–3 tons and is suitable for processing various medium-hard materials with compressive strengths up to 320 MPa—including granite, basalt, limestone, river pebbles, and quartz—as well as ores such as gold and iron. Additionally, it can process concrete blocks, red bricks, and asphalt waste on-site into roadbed aggregates and raw materials for masonry blocks, perfectly meeting the material needs of local small-scale brickyards, road maintenance operations, and rural infrastructure projects. Unlike standard electric jaw crushers, this diesel-powered stone crusher features a 12–13 horsepower air-cooled diesel engine; it eliminates the need for laying cables or constructing power distribution facilities. A single tank of diesel supports eight hours of continuous operation, significantly reducing upfront infrastructure investment for field operations and effectively solving power shortage issues in mountainous regions, forest areas, and remote quarries across Latin America.

In terms of operating principle, the diesel stone crusher utilizes a classic compound-pendulum compression crushing mechanism; a diesel engine drives the eccentric shaft via V-belts, causing the movable jaw plate to oscillate back and forth. As the movable jaw approaches the fixed jaw, material within the crushing chamber undergoes compression, splitting, and bending forces to achieve size reduction. Upon the movable jaw's retraction, material meeting size specifications discharges naturally through the bottom outlet, while oversized fragments remain for further crushing, ensuring a uniform and controllable output size. The core wear parts—the jaw plates—are cast as single units from high-manganese steel, offering superior wear and impact resistance; in humid, dusty outdoor environments, they far outlast standard carbon steel components, significantly reducing cross-border after-sales replacement costs. The unit features a robust, welded, heavy-gauge carbon steel frame that has undergone load-bearing and flaw-detection testing; its compact structure weighs only around 900 kg, allowing for on-site relocation and setup for operation in just half an hour.

Industries

We have a wide range of customers from small to mid-sized contractors, aggregates businesses, and mining operations.

Contractors

Reduce aggregate cost.

create an additional revenue stream

control your costs & production

Producers

improve efficiency and profitability

Cut down fuel costs and maintenance

maximize your output while minimizing downtime

In practical applications, this diesel stone crusher sees widespread use across the Central American market. First, it is used for primary crushing at small-scale open-pit mines—specifically for gold and limestone deposits—supplying feedstock for subsequent ball milling and sand-making processes. Second, the diesel stone crusher processes raw materials for cement blocks and permeable pavers; the crushed stone serves directly as aggregate for block-making machines, creating a compact "crushing-plus-brick-making" production line. Third, it enables on-site recycling of construction waste, allowing demolished concrete to be crushed and processed into recycled aggregate for use in rural road sub-bases. Fourth, the diesel stone crusher processes materials for water conservancy and fencing infrastructure, making it well-suited for small-scale auxiliary projects near the Panama Canal and rural road maintenance initiatives in border regions spanning multiple countries.

Performance characteristics

1. Compact size

2 .multi-functional

3 .good maneuverability

4 easy to transport

5 simple and intuitive button operation; low investment, low maintenance cost; reliable quality, reliable load-bearing capacity

6. Quick set-up time

Technical Parameters

Note: Technical data are subject to change without prior notice.
