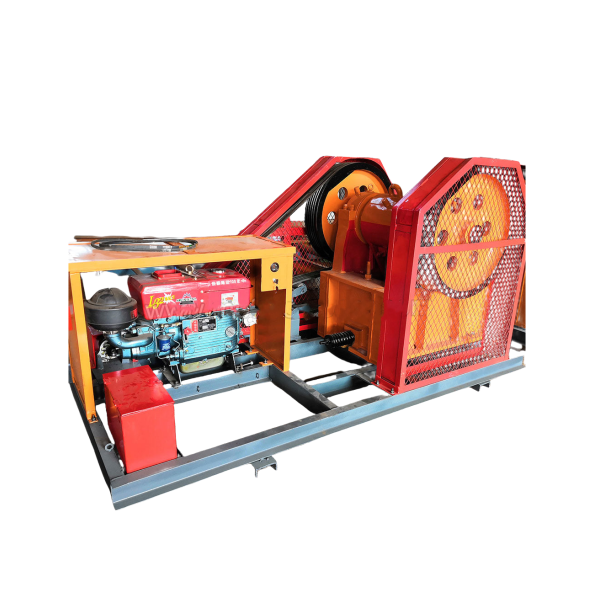

D2540 diesel stone crusher

Suitable materials: river pebbles, pebbles, granite, basalt, marble, limestone, stone, limestone, and other materials with a hardness of not more than 320 MPa

Introduction

D2540 diesel stone crusher is a jaw crusher powered by diesel engine, it has a feed size of 210mm, a discharge size of 10-40mm, and a production capacity of 8-35t/h. The final size can be 0-20mm (adjustable). It is mainly used in quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, metallurgy, and chemical industries. The crusher can be used to crush various ore, waste rock, construction waste, mudstone, and other materials.

Performance characteristics

1.Diesel engine set supply energy and can be used in remote areas without electricity

2.Low investment, fast returns

3.Quick set-up time

Technical Parameters

Model	D2540
Crusher type	Single toggle jaw crusher
Crusher model	PE250x400
Max feed size max.(mm)	210
Processing capacity(US t/h)	10-20
Final aggregates size(mm)	0-20(Adjustable discharging sizes)
Power supply unit	Diesel fuel engine
Engine power (kw)	23
Oil consumption(L/h)	4
Total weight approx. (kgs)	3400
Overall size(LxWxH)(mm	2900x1500x1400
Configuration	Jaw crusher, Diesel fuel engine set, Support fram
